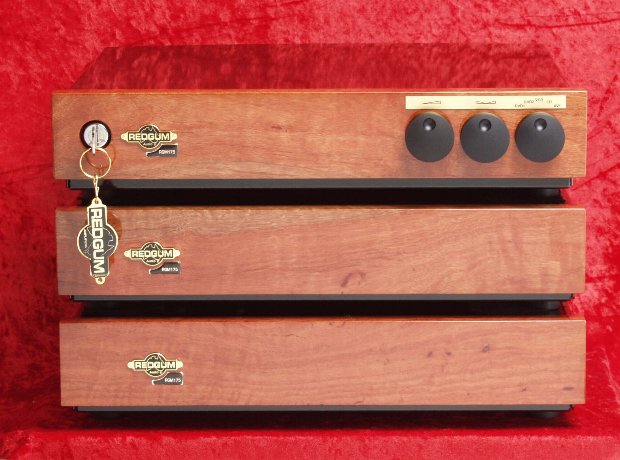

REDGUM RGM175
Pre + Dual Monoblock Amplifier Package
| Power Output: | each Monoblock: 175 Watt/Ch RMS into 8 ohms continuous sine wave at onset of clipping (Package: 297 + 297 W RMS - transient) |
| Harmonic Distortion: | less than .009% (below Clipping) |
| Intermodulation Distortion: | less than .005% (below Clipping) |
| Signal to noise: | greater than 100dB |
| Input Impedance: | 10K ohms (matches 600 ohms - 50K ohms) |
| Slew Rate: | greater than 65Volt / microsecond |
| Damping Factor: | greater than 800 |
| Frequency Response: | 0.8 Hz to 80KHz (-3dB points) |
| Peak Current: | greater than 150 amps |
| Audio Inputs: | CD1, AV1, DVD, CD2, AV2 |
| Suggested Speakers: | REDGUM RGS Lucens or Regnans (shielded Floorstanding) |
| Cabinet Finish: | high gloss solid Red Gum wood fascia, gloss black thick steel chassis, Monoblock with external rear heat sink |
| Options: | available separately as Monoblock (RG175m) & Passive Pre-amp (RG175p)
choice of Dual Mono or Single volume; key switch, rocker or toggle switch; alternative front panels can made to order (at additional charge) or as supplied by customer; Other possibilities? Just talk to us about it! |
| Warranty: | Full 7 year Warranty |
| Dimensions: | 3 chassis each: 420mm (W) x 360mm (D) x 95mm (H) 16.5in (W) x 14.2in (D) x 3.75in (H) |
| Shipping weight: | Package Total: 29 kg / 62 lb (3 x 8.2 kg/18 lb cubic) Monoblock: 11 kg / 23 lb ea; Pre-Amplifier: 7 kg / 15.5 lb |

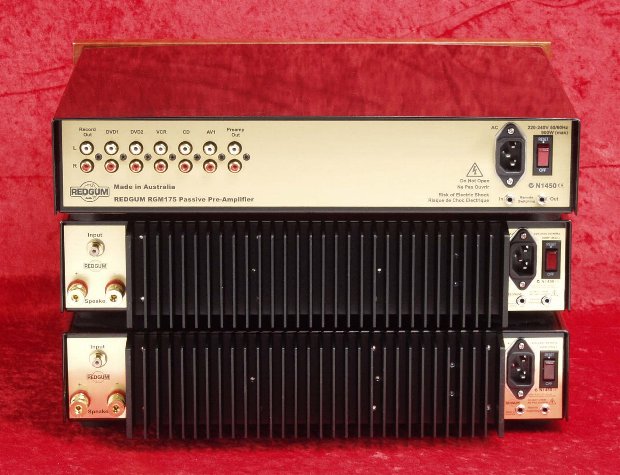

REDGUM RGM175 amplifier rear view
~ product design and specification subject to change without notice ~
