REDGUM RGM175ENR
'Signature Series'
Pre + Dual Monoblock Amplifier Package
| Power Output: | each Monoblock: 200 Watt/Ch RMS into 8 ohms continuous sine wave
at clipping (Package: 325 + 325 W RMS - transient) |
| Harmonic Distortion: | less than .009% (below Clipping) |
| Intermodulation Distortion: | less than .005% (below Clipping) |
| Signal to noise: | greater than 100dB |
| Input Impedance: | 10K ohms (matches 600 ohms - 50K ohms) |
| Slew Rate: | greater than 65Volt / microsecond |
| Damping Factor: | greater than 800 |
| Frequency Response: | 0.8 Hz to 80KHz (-3dB points) |
| Peak Current: | greater than 150 amps |
| Audio Inputs: | CD1, AV1, DVD, CD2, AV2 |
| Suggested Speakers: | REDGUM RGS Lucens or RGS Regnans (shielded Floorstanding) |
| Cabinet Finish: | high gloss solid Red Gum wood fascia, black gloss thick steel chassis, Monoblock with heavy duty "Sign Wave" heat sink base |
| Options: | available separately as Monoblock (RG175ENRm) & Passive
Pre-amp (RG175p) choice of Dual Mono or Single volume; key switch, rocker or toggle switch; alternative front panels can made to order (at additional charge) or as supplied by customer; Other possibilities? Just talk to us about it! |
| Warranty: | Full 7 year Warranty |
| Dimensions: | Pre-Amp: 420mm (W) x 360mm (D) x 95mm (H) 16.5in (W) x 14.2in (D) x 3.75in (H) Monoblock each: 420mm (W) x 360mm (D) x 145mm (H) 16.5in (W) x 14.2in (D) x 5.7in (H) |
| Shipping weight: | Package Total: 47 kg / 103.5 lb ( 30 kg/66 lb cubic) Monoblock: 20 kg / 44 lb ea; Pre-Amplifier: 7 kg / 15.5 lb |

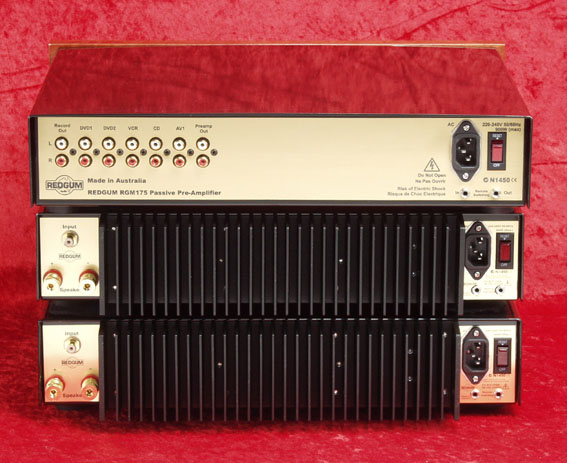

REDGUM RGM175ENR amplifier rear view
~ product design and specification subject to change without notice ~
